40 ton cutting machine

Gerson 40 ton cutting machine is the die cutting machine which have 4o tons cutting force .40 tons have two kinds of models :40 tons travelling head cutting machine and 40 tons beam cutting machine.

These 40 ton cutting machines are widely used for die cutting soft and semi-automatic material:leather,fabric,paper,plastic,rubber,cork wood etc.,

1.40 ton traveling head cutting machine

40 ton cutting machine
40 ton cutting machine

.A travelling head die cutting press can process material in roll form as well as sheets, in their full width, without previously ranging down. Larger head sizes and cutting forces will allow cutting of a wider range of materials, in single or multiple layers, with larger cutting dies, although small dies can be used equally as well.

1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting dies ensures the clear view over the table.
3.Fully automatic cutting system available including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500 mm trolley or 600*600 trolley or more wide trolley ,Any size trolley can custom made.
6.From 25 Tons to 100 Tons cutting force for choice or can custom made.
7.Special custom design or specifications welcome.

Model GRM(A)-25T to 200T
Max cutting force(T) From 25 Tons to 200 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting table width(mm) 1800~2500mm or more
Based on your material and die
Example: 1600X600mm etc.,
Cutting Head Movable trolley 500×500 to 1000x1000mm
Motor power 3kw to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,

40 ton cutting machine

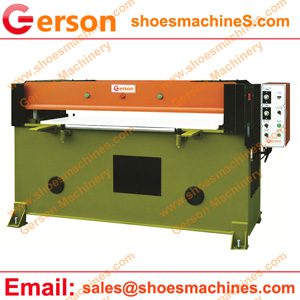

2.40 ton beam cutting machine

40 ton cutting machine1. Operate the structure of double cylinder and precise four-column automatic balancing links to make sure same cutting depth in each and every cutting region.
2. If the pressure plate presses downward to touch the die cutter, the appliance automatically slowly cuts, that make that there are no error involving the top and bottom layers of cutting materials.
3. Have setting structure especially, that makes adjustment of stroke safe and accurate coordinating with cutting force and cutting height.
4. Set automatic force feed to ensure the precision of machine and raise longevity of machine.
Applications:
From the smallest 25 Ton for the largest 500 Tons and up on request, Gerson Precise die cutting machine are adaptable to some lots of applications. Suited to cutting many materials:Leather,rubber,fabric,plastic,paper,paperboard etc.,

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
