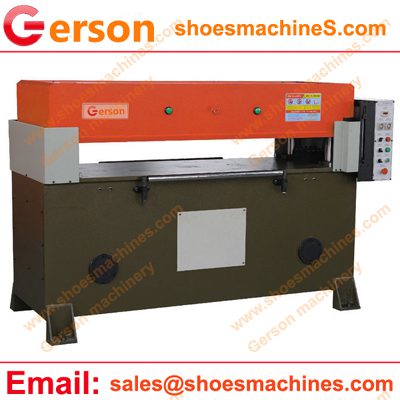

40 ton beam press is a Gerson die cutting press which is used for cutting out or forming the most soft and semi-hard material in sheet or web or roll .
1.Beam press is one of the press machines made by Gerson .This beam press is hydraulic driven .so also known as hydraulic beam press machine which is the 4th generation products Gerson produced.In fact ,you also can call 40 ton hydraulic press machine .You could see this link for details for beam press :Beam Press:The Ultimate FAQ Guide
2. 40 tons refers to the maximum pressure generated when the press moves downward to press or die-cut or form the product. Of course this pressure can be adjusted when you use it to make very small products, for example only 25 tons. At the same time, if you think 40 tons is not enough, there will be a lot of presses with higher pressure to choose from. For example,50 ton ,100 ton,500 ton etc., There are a lot of beam press machines, and Gerson produces custom-made in accordance with customer requirements if you need.
3. The size of the working area of the 40-ton press machine can be customized. Of course, this fee does not require additional costs.For us, making a 30X55inches and 40X60 inches are almost the same. It’s just a small difference in cost.
4.There are also many options for the entire feeding system. The easiest is manual feeding. This price is the cheapest, but the efficiency is slow. Of course, automatic feeding is the choice of many people, and automatic feeding depends on your products.Single side automatic sliding table sheet feeding or Automatic double side sliding table sheet feeding system ,automatic roll feeding system : pneumatic pinch rolls feed,clamping beam feeds,inboard and outboard motorized conveyor belts,continuous cutting belts etc.,
5.What is the price of a beam press ? It depends on what kind of product you buy: your production requirements and your budget or how much you want to spend on equipment. The price of the machine is also different because of the different configurations. If you want to get a quotation right away, you can contact us immediately, we believe we will give you a satisfactory answer.
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm can be customized |
| Cutting area(mm) | (500-3000)X(1000-3000)mm |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
