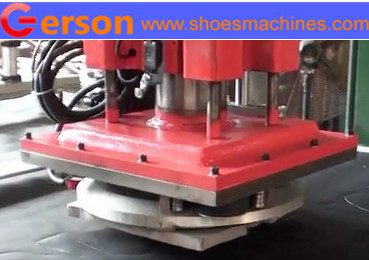

Gerson 360 degree rotating head die cutting machine is belonged traveling head press that with 360 degree ratating head.This 350 degree rotation head press can die cut the materials such as: Abrasives, Carpet, Cork, Felt,Fiberglass, Floor Tile, Hardboard, Packaging and Gasket Material,Paper, Rubber, Shoe Materials,Sponge, Textiles etc.,
1.This 360 degree rotating and traveling head die cutting machine can rotate the cutting head 360 degrees, therefore it is possible to gain maximum advantage from the automatic nesting system & get optimal layout yields.
2.Different cutting power and feeding types available .such as cutting on belt with clamp beam feeding system,motorized auto incremental sliding table,Feeding with belt & oversized nip roller suggested for materials in rolls or sheets joined to make a roll,Cutting Belt and Pinch and Grab Pincers etc.,
3.The machine can die cut single layer and multiply layers .Easy to use,high speed ,Saving time and labor etc.,
4.Special specifications are available upon request,Gerson welcome any custom build .
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head
Movable trolley |
500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
