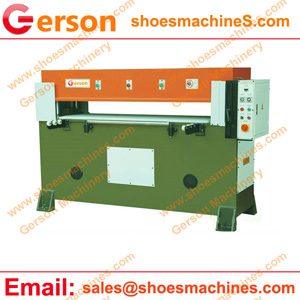

35T Beam Press

35T beam press built by Gerson,this beam press is one of porpular die cutting press used in die cutting out pattern and shapes from most large area material including foam/sponge,leather,cloth/fabric,PVC ,PE,plastic,rubber etc.,

35T Beam Press
35T Beam Press

1.35T mean 35 ton cutting pressure when die cutting the material.also have any large cutting force for more rigid and large material .Gerson beam press can manufacture up to 500 ton cutting force.

2.This beam press have fixed beam press and receding beam press (click for the details).The fixed beam press is that the upper beam fixed only can move downward and upward  while the receding beam press can move backward and forward.For more details you could click the link for more information of receding beam press.

3.The beam press have many material feed type for different material including manual feed,sheet automatic single or double sided sling tray table feed ,roller feed ,Cutting on belt feed material etc.,

4.The beam press uses high qualtity hydraulic system ,double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism and  central oil supply automatic lubricating system that make the machine mroe stable and reliable.

5.Need more information or any question ,please contact Gerson ,Gerson welcome any special requirement for your proudction .Gerson belive that  we could do best  to meet the varying and individual needs.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500
