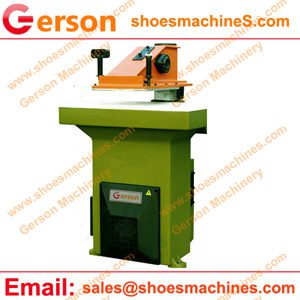

22T Rotating arm hydraulic cutter

Rotating-arm-hydraulic-cutter
Rotating-arm-hydraulic-cutter

Usage and characteristics:

1. The equipment does apply for cutting one layer or multi layers of leather, plastic, paperboard and fabric etc with cutting die.It is the ideal die cutting machine  for such industries as shoemaking, luggage, garment, automobile, art ware, packaging and electronic industry etc.
2. The two kinds of cutting for selection. The primary type is small pressure stepless regulation; Your second type is that the cutting adopts intelligent pressure feedback design function without setting of cutting point. the peak of die cutter doesn’t have any influence for the cutting and ideal cutting result is obtained from each cutting point.
3. Through double oil way static pressure supporting pressure-feed lubricating system, the vertical column makes all the manual operation be simple, flexible and worry-saving.
4. The key fittings adopt top quality imported assemblies,that are fitted with characteristics for instance reliable quality, low noise, high efficiency and energy saving.

Feature:

1.Affordable
2.Rugged cast iron frame
3.Steel fabricated swinging beam with widths to accommodate a range of needs
4.Special selectable setting; to be used with small area dies, prevents 5.over penetration into your cutting pad
6.Excellent operator visibility
7.Low background level

Model Maximum Cutting power(ton) Area of work table(mm) Swaying arm width Cutting table Motor power Machine dimensions(mm) Net weight(with oil) Gross weight
GRA-220 216KN(22T) 900×430 370mm 90mm 0.75Hp 900×850×h1400 650kg 750kg
GRA-270 264.6KN(27T) 1000×500 370mm 90mm 1.1Hp 1000×1050×h1410 850kg 900kg
