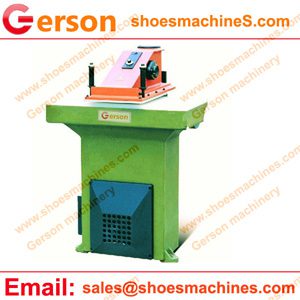

22T hydraulic clicking machine is also know as 22T hydraulic cutting machine or 22T hydraulic clicker press is one kind of die cutting machine that manufacture by Gerson .
1.22 ton cutting pressure .Also any other cutting pressure available from 8T to 500T die cutting machine .
2.Mainly used for cutting out soft and semi-rigid material such as leather ,fabric,rubber,foam,paper,plastic etc.,
3.Top hydraulic system design with lubricating system to lessen wear and prolong service life.
4.Automatic stroke end setting and different cutting knife/die without adjustment.
5.More information or request,any custom build machine welcome to contact Gerson .
| Model | GRA,GR,GRB serials |
| Maximum Cutting Force | 8Tons-500Tons or More |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-300mm or more |
| Tension distance | 60-350mm or more |
| Cuttting table size | 650×330mm to 3000mm×2500mm |
| size | 660×780×1500mm to 2800×3200×1700mm |
| Motor Power | 0.75KW to 22Kw |
| Net Weight (N.W.) | 550Kgs to 18000kgs |
