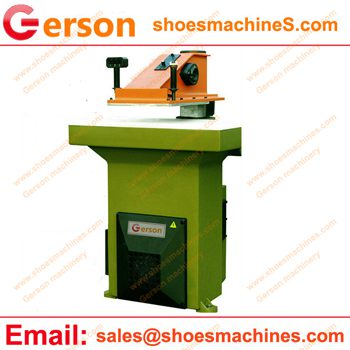

22T hydraulic clicker press with swing arm

22T hydraulic clicker press with swing arm is 22 ton die cutting machine with swing arm . Gerson have from small 8 ton,10 ton ,12 ton , 14/15/16 ton 18 ton 20 ton ,25,27/28 ton .

22T hydraulic clicker press with swing arm
22T hydraulic clicker press with swing arm

1.22T hydraulic clicker press with swing arm can die cutting the material including Nonmetal material such as leather, fabric, foam, EVA, rubber,ponge ,plastic,felt etc.

2.The cutting area can be customized .The nomal is 900*430mm ,1000mm*500mm etc.,

3.The cutting force is 22 ton ,also have small 8 ton,10 ton ,12 ton , 14/15/16 ton 18 ton 20 ton ,25,27/28 ton .The cutting force depends on the total blade perimeter of the die cutter/cutting mould.

4. Feeding system: It is manual feed material .If you need automatic feed material ,we have autoamtic feed material .So it depends on the material and procuts .

5.All Gerson products can be customized and custom build for our customers.

Model GSB,GR,GRA,GRB serials
Maximum   Cutting Force 8Tons-500Tons or More
Cutting speed 0.085m/s
Adjustable stroke 5-300mm or more
Tension distance 60-350mm or more
Cuttting table size 650×330mm to 3000mm×2500mm
size 660×780×1500mm to 2800×3200×1700mm
Motor Power 0.75KW to 22Kw
Net Weight (N.W.) 550Kgs to 18000kgs
