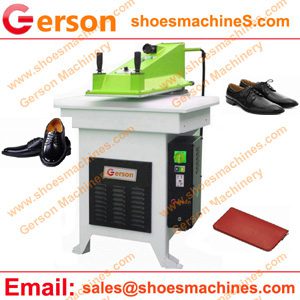

20T Multiforce Swing beam Clicker Press

Multiforce Swing beam Clicker Press, in comparison to other swing-arm lines, is equipped with a computer device for your automatic setting on the cutting power “multiforce” and the low friction arm movement “lightswing”. The multiforce device elminates the need to set the cutting power; by negating this operation, the operator can give full attention to the very best position from the cutting die within the material thus increasing material yield & production. Moreover, may control on the penetration from the die inside the cutting pad we could reduce the overall wear as much as 50%. The lightswing system dramatically cuts down on effort needed to move the beam, significantly reducing operator fatique.



Model Cutting Table UP Beam Head Max Pressure Net Weight
MGRA-270L 1000×500 610mm 25T–245Kn 1050 (kg)
MGRA-270M 1000×500 500mm 25T–245Kn 1030 (kg)
MGRA-270C 900×450 500mm 25T–245Kn 900 (kg)
MGRA-250L 1000×500 370mm 25T–245Kn 990 (kg)
MGRA-250M 900×450 370mm 25T–245Kn 880 (kg)
MGRA-220L 1200×500 500mm 22T – 216Kn 1060 (kg)
MGRA-220M 900×450 370mm 22T – 216Kn 880 (kg)
MGRA-220C 900×430 370mm 22T – 216Kn 630 (kg)

Electric Supply Voltage:  3 phases×440/415/400/380/220/200V, 50/60 Hz

Single phase 110V/V, 50/60 Hz
