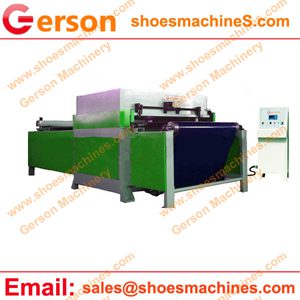

200 tons die cutting press machine

Gerson  machinery 200 tons die cutting press machine for the most industries including:Shoes,Bags,Belt,Medical,Electronics,Aerospace,Packaging,auto parts,Garment,Gaskets,Pads,Insulators,Aerospace,Military etc.,

200 ton cutting machine belong Gerson beam press:including fixed beam press and movable beam press.

This die cutting machines most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.

200 tons die cutting press machine
200 tons die cutting press machine

1.From the smallest 25 Ton to the largest 500 Tons.
2.Cutting are from 800x500mm to any size according material requirement.
3.Die Cut materials in single or multiple layers
4.Blade upward or downward cutting
5.Four column, with two cylinder construction
6.Double mechanical balancing system
7.Even cutting and full power across complete cutting area
8.Heavy duty construction
9.Low deflection
10.Two stage press closure reduces size variation or distortion in 12.thick or multi-ply material applications
11.Steel to steel cutting available with optional equipment
12.Accept customized requirement .

Option equipment tools:

1.Inboard and outboard material conveyors
2.Manual tool rails
3.Pneumatic adjustable tool rails
4.Board rails to clamp cutting board to press head
5.Material feed rollers
6.Automatic knock-out systems
7.Material alignment
8.Automatic cutting pad shifter
9.Edge sensing
10.Automatic tool changing
11.Tool racking
12.Material feed gantries and many other options.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(1000-3000)mm
Based on your material and die
Example: 1600X600mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,
