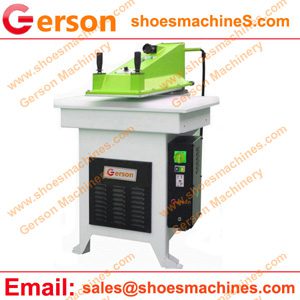

200 kn clicker press that Gerson brand manufactured by Gerson machinery.This kind of clicker press have 200 kn cutting force .
200 kn clicker press
1.This kind of clicker press is hydraylic driven,easy to use by double hand .
2.This hydraulic clicker press work with the formed cutting knife/die/mould ,so it can die cut any shapes .
3.There have different models for choice.such as the cutting table size,cutting force such as 80 kn,100 kn,120,145/150/160 kn,180 kn,250 kn,270/280 kn etc., and more big size cutting table and cutting force can be choose the other press that for large proeuction.
4.Strong structure,high speed and low energy consumption.quicker setting of daylight.
5.Gerson welcome custom build machine and dies.
| Model | GSB,GR,GRA model |
| Maximum Cutting Force | 80-300 kn(more large cutting force ,please see the other model) |
| Cutting speed | 0.085m/s |
| Adjustable stroke | 5-180mm |
| Tension distance | 60-250mm |
| Cuttting table size | 800,900,1000,1200×400,500,600mm more |
| size | 660×780×1500mm or more |
| Motor Power | 0.75KW,1.1KW |
| Net Weight (N.W.) | 450Kgs-1100Kgs |
