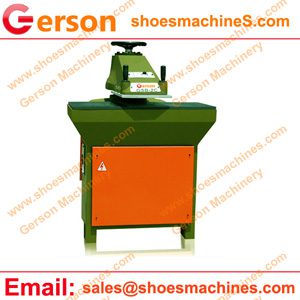

18T tons cutting machine

Gerson 18T tons cutting machine is die cutting machine with 18t tons cutting power or cutting force. 18t cutting machine can die cutting most small pieces material products.

18t tons cutting machine features:

18T tons cutting machine
18T tons cutting machine

1.Easy to operate with swing arm and button press.
2.Economic cost and stable working function.
3.Two hands switches operate to ensure the operator is safe and easy.
4.The position of the swing arm is adjusted by the upper handwheel on the top of clicking press,which can obtain the best cutting position ,which can increase work efficiency and prolong the service life of cutting dies and board

Model GSB-2C/12/14/18/20/25
Cutting Force 12,14,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 650Kg/750kg/1000kg/1110kg
Hydraulic oil (46#) 50 Liters
