150T tons cutting machine

Gerson die cutting machine with 150T tons cutting force. 150T tons can die cutting most large size dies .

Material Application:

Textile,Plastics,Rubber,Foam,Composites,Paper,Paperboard,Wood,Leather,Cork,Felt

Industry products aplication:

Gasket,Filters,Abrasives,Shoe Component,Sponge,Packing
Shoulder Pad,Caps,Linings,Shirt Collars,Box,Brassieres,Floor Mats
Carpets,Toys,Medical Supplies,Other Suitable Material

Gerson have 150t tons fixed beam cutting machine and 150t movable beam cutting machine.

1. 150t tons fixed beam cutting machine:

150T tons cutting machine
150T tons cutting machine

This  most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2500mm×2500mm.The cutting power or pressure from 30 tons to 500 tons.

1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.

2.The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.

3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.

4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.

5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Distance between upper press board andworktable(mm) 50-240
Cutting area(mm) 1250×600,700,800,900,1000,1200, 1500
1470×600,700,800,900,1000,1200, 1500
1600×600,700,800,900,1000,1200, 1500
Motor power 1.5 to 22KW
Machine Net weight (KG) 1600 to 16500
1700 to 17500

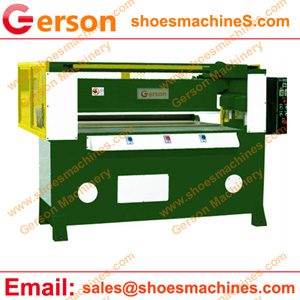

2.150t tons movable beam cutting machine

150T tons cutting machine
150T tons cutting machine

Feature:

1.The upper receding beam or head can be moved forwards and backwards and the distance is fine adjustable for the convenience of placing cutting materials.
2.Cutting area same as the beam/head area ,so it is great for large cutting dies.
3.The cutting material remains stationary during the receding cutting.
4.Larger head, bed and tonnage needs can be custom ordered.

Model Maximum Cutting power(ton) Area of work table(mm) Press Board Stroke      range Distance between upper pressing board and worktable Motor power Machine dimensions(mm) Net weight
GRH-35 350KN(35T) 1600*610mm 1600*600mm 0-110mm 60-160mm 3KW 2320*1400*1520mm 2400kg
GRH-50 500KN(50T) 1600*610mm 1600*600mm 0-110mm 60-160mm 4KW 2320*1600*1720mm 4000kg
GRH-80 800KN(80T) 1600*820mm 1600*800mm 0-120mm 60-180mm 4KW 2320*1600*1720mm 5500kg
GRH-120 1200KN(120T) 1600*820mm 1600*800mm 0-120mm 60-180mm 5.5KW 2320*1600*1720mm 6500kg

**Cutting Force more than 120T or upwards can custom made.
**Cutting Bed more than 1600x800mm or upwards can custom made.
