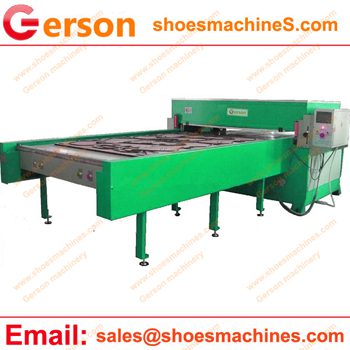

150 ton cutting machine

150 ton cutting machine  have 150 ton die cutting press machine with 150T hydraulic pressure .This large cutting pressure is most used for die cuttting out large semi-rigid material .

150 ton cutting machine
150 ton cutting machine

1.150 ton cutting machine is using hydraulic driven system with enough 150 ton hydraulic pressure to die cut out the material in sheet or roll material.

2.150 ton is hydraulic pressure .The other from small to big hydraulic pressure is also available.such 25 ton ,35 ton /40 ton .50 ton ,60 ton ,80 ton ,100 ton ,200 ton ,300 ton ,400 ton ,500 ton etc.,

3.The die cutting machine can feed the material automaticly or manual feed .The feed type depending on your choice for your production .

4.This die cutting machine is mainly used in cutting various materials,like sponge foam , leather, rubber, plastic, fabric, etc with a blade of fixed die shape.

5.All custom build are welcome ,Gerson can design and build it .

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1800X900mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500
