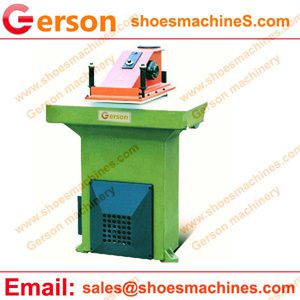

1000mm,900mm x 450,500mm clicker press

Gerson clicker press with the cutting table size 1000mm,900mm x 450,500mm or other size.

 1000mm,900mm x 450,500mm clicker press

1000mm,900mm x 450,500mm clicker press

1.This hydraulic swing beam cutting press is good for the soft and semi-hard material includingt cork,rubber, paper, leather, fabrics, plastics and many other materials, single or double edged strip knives can be used.

2.High quality of hydraulic component and other parts are are self-lubricating which make sure the long life of machine.

3.High speed with easy operation ,low noise and low energy consumption.

4.Cutting force from 8 tons to 28 tons and cutting table size from small size to big size .And work with any other cutting die that can die cut out a variety of shapes.

5.Any special requirement ,Please contact Gerson ,we accept any custom build.

Model

GRA,GSB,GR

Max cutting force

8,10,12,14/15/16,18,20,25,27,28 tons

Working area

650,800,900,1000,1200X500,600mm

Swing arm width

370mm,500mm,600mm

Cutting stroke

90mm

Motor power

1.5KW

Electric Supply Voltage

3×440/415/400/380/220/200V, 50/60 Hz

Single phase 240V/220V, 50/60 Hz

Machines dimensions

1000X1020X1410mm

Packing size

1100X1100X1600mm

N.W(with oil)

480-980kg

G.W

500-1000kg
