100 Tons Cutting machine

Gerson machinery have designed and manufactured many 100 tons cutting machine for custom requirement.

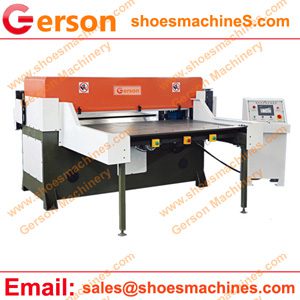

One.100 ton fixed beam cutting press machine

100 Tons Cutting machine
100 Tons Cutting machine

This fixed head cutting machine or fixed beam press is a die cutting machine with fixed beam or head.This die cutting machines most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.

Model GRB(C)-25T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X700mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

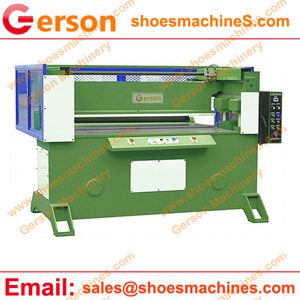

Two.100 ton movable beam cutting press machine:

100 Tons Cutting machine
100 Tons Cutting machine

1.The upper receding beam or head can be moved forwards and backwards and the distance is fine adjustable for the convenience of placing cutting materials.
2.Cutting area same as the beam/head area ,so it is great for large cutting die.
3.The cutting material remains stationary during the receding cutting.
4.Larger head, bed and tonnage needs can be custom ordered.
5.From 35 tons to 400Tons cutting power for your choice.

Model GRH-40T to 500T
Max cutting force(T) From 25 Tons to 500 Tons
Range between working table 50-240mm (Upper to Bottom Table)
Stroke Adjustment 0-170mm
Cutting area(mm) (500-3000)X(500-3000)mm
Based on your material and die
Example: 1600X800mm etc.,
Motor power 1.5 to 22KW
Electric Power 220V/380V/415V,50-60hz etc.,
Machine Net weight (KG) 1600 to 16500
1700 to 17500

**Cutting Force more than 120T or upwards can custom made.
**Cutting Bed more than 1600x800mm or upwards can custom made.
