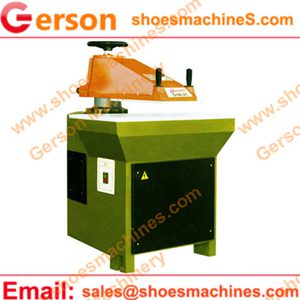

10 ton and 12 ton cutting machine

Gerson 10 ton and 12 ton cutting machine is a swing arm cutting machine which have swing arm or beam . The swing arm cutting machine also have 8 tons, 10 tons,12 tons,14 tons ,16 tons ,18 tons ,20 tons ,22 tons,25 tons ,27 and 28 tons .

10 ton and 12 ton cutting machine
10 ton and 12 ton cutting machine

If you wants more than 28 tons ,you could choose the beam press which from 30 tons to 500 tons.

The 10 ton and 12 ton cutting machine can cut most leather,paper,fabric,foam etc.,soft and small or mini sizes dies in sheets.

1.The arm or beam is light for easy swinging when working.
3.Availability of different sizes makes the machine adaptable for all production requirements.
4.Production increases from 6-10% have been noted over mechanical clicking machine.
5.From 10 tons to 25 tons cutting power for factory choice.
6.Also other swing arm press models for choice: GRA model and GR models.

Model GSB-2C/10/12/14/15/16/18/20/25
Cutting Force 10,12,14,15,16,18,20,25 Tons
Sway Arm Width 330X450mm,350X450mm,450X550mm
Stroke Adjustment 5-75mm
Distance Between Upper Table And Lower Table 60-140mm
Table Area 900X400mm,1000X500mm
Electric Supply Voltage 3×440/415/400/380 /220V, 50/60 Hz
Motor Power 0.75kw,1.1kw,1.5Kw
Packing Size(LXWXH) 1100X1100X1700mm
Weight 500Kg/650kg/1000kg/1100kg
Hydraulic oil (46#) 50 Liters
