Gerson auto feed cutting machine is automatic feeding material die cutting machine .It is for high volume production .Gerson auto feeding cutting machine have two models :auto feed travelling head cutting machine and auto feed full head beam cutting machine.
These auto feed cutting machine can be die cutting the following material:Leather,rubber,fabric,plastic,paper,board,textile etc.,
Auto feed full head beam cutting machine
This most used for large area soft material die cutting .The cutting area can from 1250mm ×500mm to 2000mm×2000mm.The cutting power or pressure from 30 tons to 500 tons.
1.Using double fuel tanks and precision four-post self auto-balancing linkage guarantees the same cutting depth of each cutting position.
2.The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
3.Precise cutting balance can effectively reduce the loss of knife mold and cutting plate.
4.The central oil supply automatic lubricating system guarantees machine precision and prolongs service life of machine.
5. The following equipment tools can improve the productivity for customers choice :Automatic feeding material system and Inboard and outboard material conveyors ,material feed rollers and automatic knock-out systems
| Model | GRB(C)-25T to 500T |
| Max cutting force(T) | From 25 Tons to 500 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting area(mm) | (500-3000)X(1000-3000)mm |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Motor power | 1.5 to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make die cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,feeding type etc.,

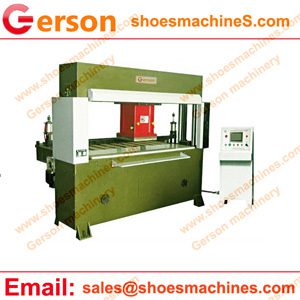

Auto feed travelling head cutting machine.
The cutting jobs and patterns are pre-programmed into the cutting press machine computer or this can be carried out off-line and information sent down to the machine. Thus, the operator has no more to do than load the material and cutting tool and gather the cut pieces as they emerge from the machine: the machine dictates the speed, accuracy and material yield.
1.Both for cutting soft or semi-rigid in single layer or multiple layers.
2.Cutting head left and right together with the cutting dies ensures the clear view over the table.
3.Fully automatic cutting system avaliable including feeding, cutting, knock-out and stacking system make high productive.
5.Large cutting bed with 500*500mm trolley or 600*600trolley or more wide trolley ,Any size trolley can custom made.
6.From 25T to 100Tcutting force for choice or can custom made.
7.Special custom design or specifications welcome.
| Model | GRM(A)-25T to 200T |
| Max cutting force(T) | From 25 Tons to 200 Tons |
| Range between working table | 50-240mm (Upper to Bottom Table) |
| Stroke Adjustment | 0-170mm |
| Cutting table width(mm) | 1800~2500mm or more |
| Based on your material and die | |
| Example: 1600X600mm etc., | |
| Cutting Head Movable trolley | 500×500 to 1000x1000mm |
| Motor power | 3kw to 22KW |
| Electric Power | 220V/380V/415V,50-60hz etc., |
| Machine Net weight (KG) | 1600 to 16500 |
| 1700 to 17500 |
Gerson can make the cutting machine according to your specifical requirement :such as cutting force power,worktable size,motor,etc.,
